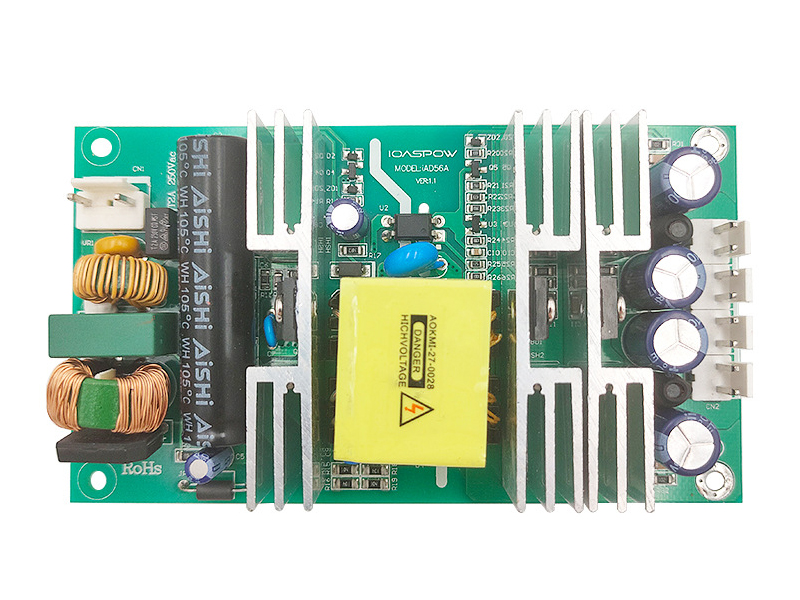

Product Category：Ac to Dc Open frame power supply
◆Dimensions（MM）：L120×W68×H24
◆Input voltage：AC100V - 240V / 50- 60HZ
◆Output Power：60W(Dual output）
◆Overall efficiency：>=85%
◆Operating temperature：0℃～40℃
◆Storage temperature：-20℃～80℃
Output characteristics：
Model name | The output voltage（V） | Minimum（V） | Max（V） | Light load（A） | Overload（A） | Ripple（MV） | Short circuit protection |
iAD56A | 5 | 4.75 | 5.25 | 0.5 | 5 | 50 | Self-recovery |
3.3 | 3.13 | 3.46 | 0.5 | 5 | 50 | Self-recovery | |
iAD56A | 12 | 11.4 | 12.6 | 0.5 | 3 | 120 | Self-recovery |
5 | 4.75 | 5.25 | 0.5 | 4 | 50 | Self-recovery | |
iAD56A | 24 | 23.8 | 25.1 | 0.5 | 1 | 240 | Self-recovery |
5 | 4.75 | 5.25 | 0.5 | 4 | 50 | Self-recovery | |
iAD56A | 12 | 11.4 | 12.6 | 0.5 | 3 | 120 | Self-recovery |
24 | 23.8 | 25.1 | 0.5 | 1 | 240 | Self-recovery |
Applications: network security, advertising machines, bank terminals, low-power systems, industrial control systems, etc.
